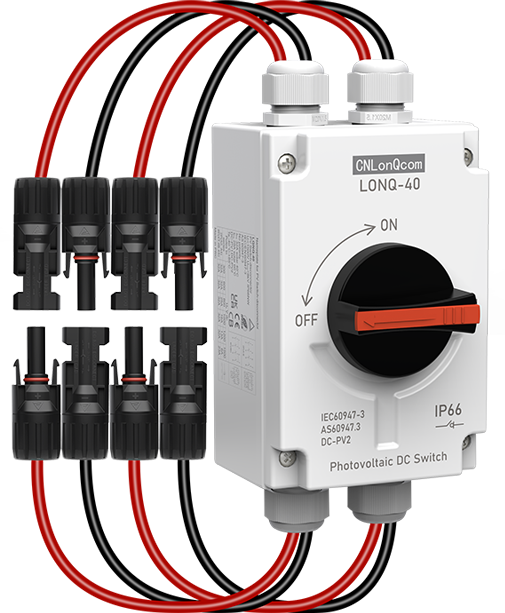

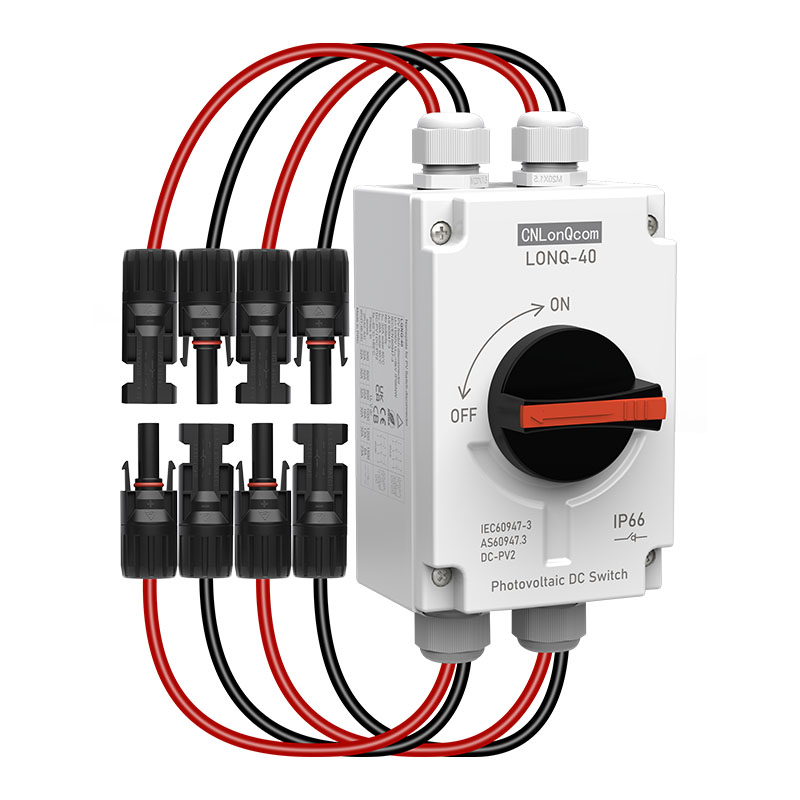

PV Disconnect Switch DC1200V 32A with PV Cable 2in 2out

CNLonQcom PV Disconnect Switch DC1200V 32A with PV Cable 2in 2out Isolator Switch IP66 Outdoor Waterproof with PV Extension Cord and Dustproof For Solar Panel and Wind PV Systems, RV, Houses, Boats. ●Rated voltage: DC1200V
●Rated current: 32A
●String: 2in 2out
●Protection level:IP66
●Shell material: PC
●Conductor material: copper
●Poles:4 poles
●Certificate: CE, TUV, CB, AZ, UKCA, ROHS, ISO9001

Model:LONQ40.2-2

Send Inquiry

Product Description

Technical Data
Model	LONQ-40.2-2
Type	PV DC Disconnect Isolator Switch
String	2 in 2 out
Rated Current In(A)	32	32	32	32	32	23
Rated Working Voltage Ue (V)	300	600	800	1000	1200	1500
Rated Insulation Voltage Ui (V)	1500V
Pole	4P
Rated Impulse Withstand Voltage Uimp (kV)	8
Short-Time Withstand Current Icw (kA)	1
Standard	IEC/EN60947-3 GB/T 14048.3
Insolation Feature	Yes
Levels of Protection	IP66
Housing Material	PC
Conductor Material	Copper
Quality Certificate	TUV、CE、CB、UKCA、AZ、CCC、ISO9001、ROHS
Mechanical Life (times)	20000
Electrical Life (times)	6000
Knob Positions	OFF at 9 hr , ON at 12 hr
Operating Temperature	-40℃ to +85℃
Humidity	95%
Altitude	2000m
Installation	Wall Mounting
Size and Weight
one-sided line length（mm）	195
Product Size（mm）	213104110
Product Weight（kg）	0.895
Individual Package Size（mm）	260108120
Individual Package Weight（kg）	1
Packaging Details	1Pcs per inner box, 20Pcs per carton
Outer Box Size(cm)	57.527.549.5
Outer Box Weight(kg)	21.05

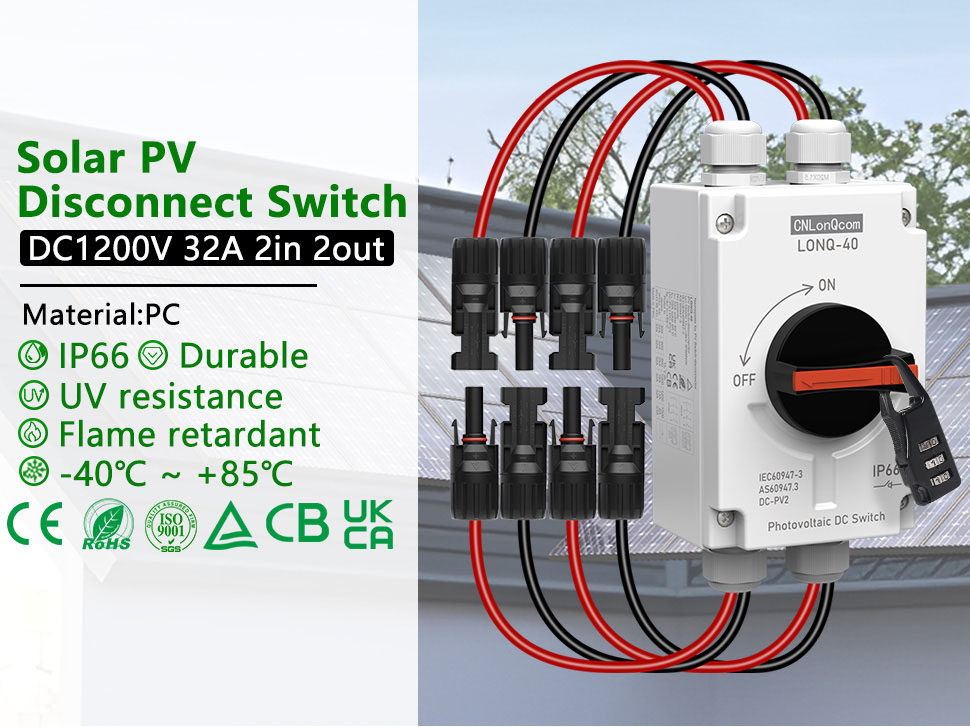

Solar PV
Disconnect Switch

DC1200V 32A 2in 2out

Material:PC

IP66

Durable

UV resistance

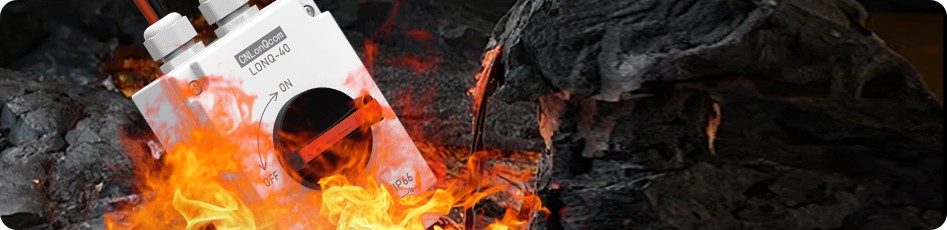

Flame retardant

Non-polarized

-40℃ ~ +85℃

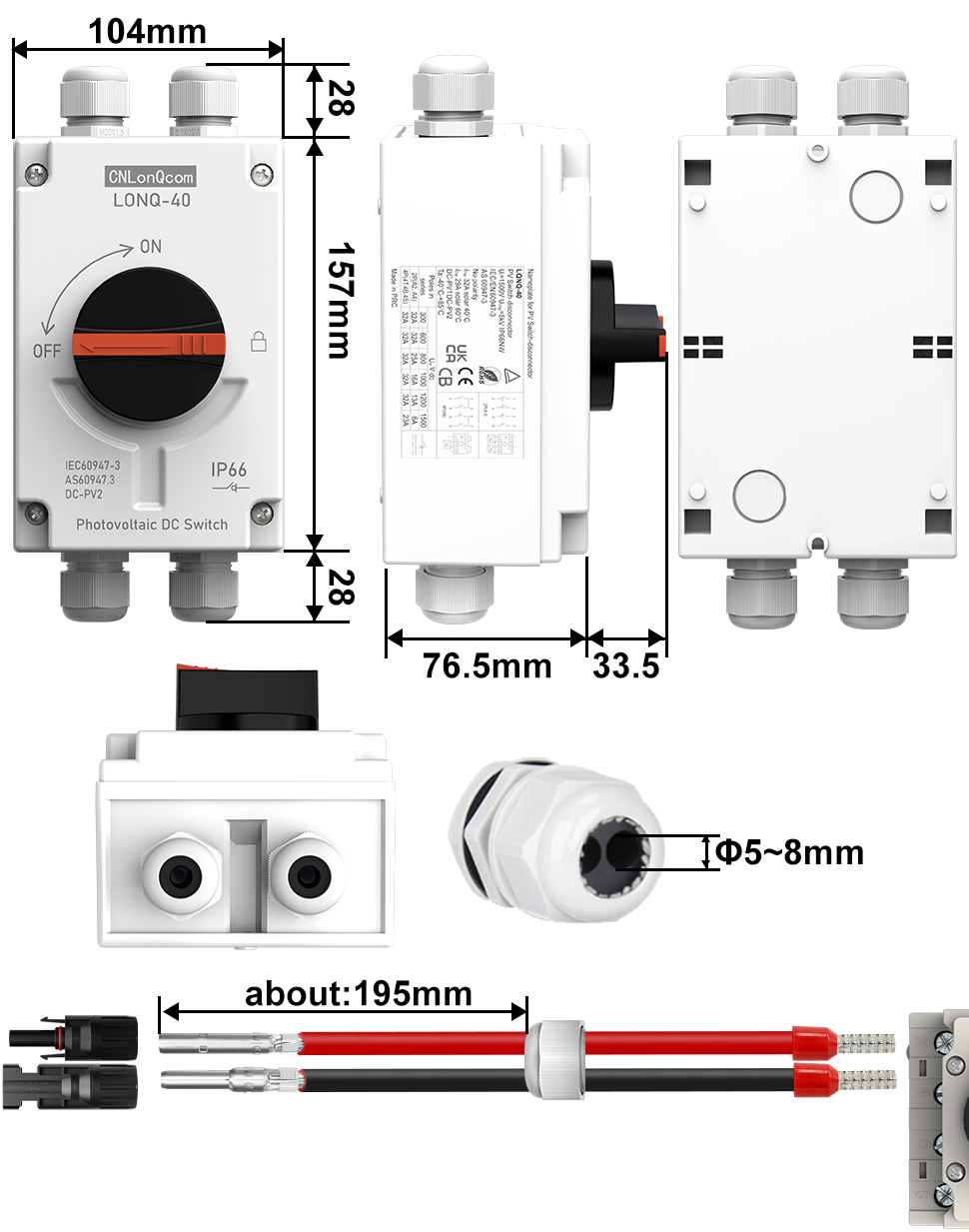

SIZE

LWH: 213154110(mm)

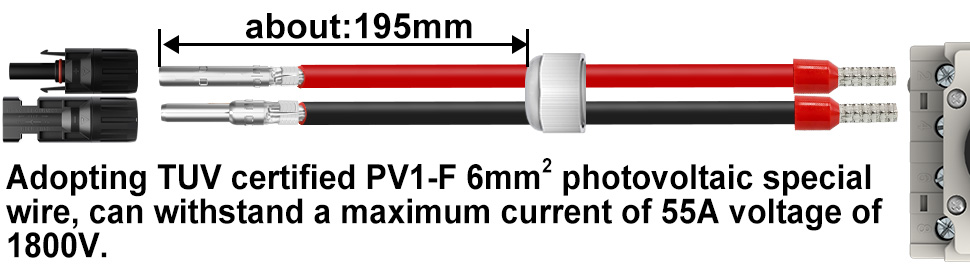

Adopting TUV certified PV1-F 6mm2 photovoltaic special wire, can withstand a maximum current of 55A voltage of 1800V.

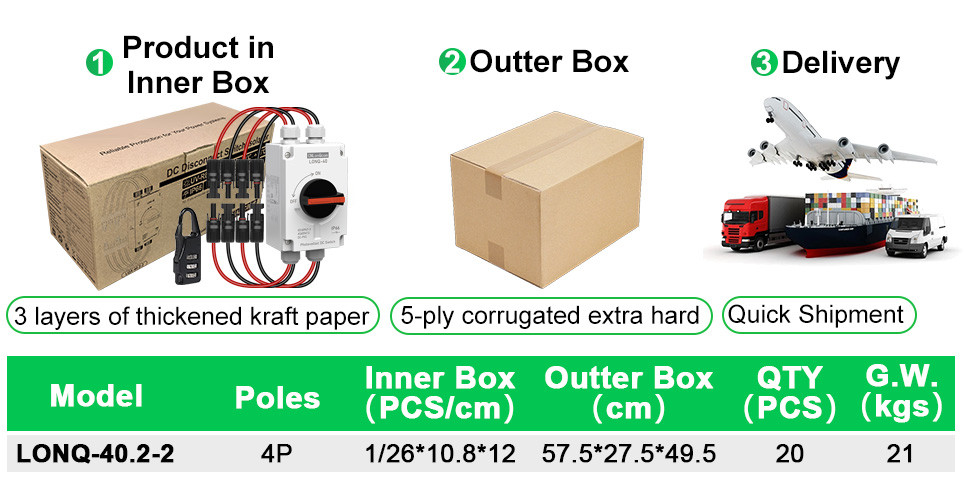

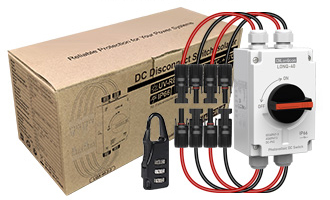

FIRM PACKAGING

guarantee replacement of damaged goods

1Product in Inner Box

3 layers of thickened kraft paper

2Outter Box

5-ply corrugated extra hard

3Delivery

Quick Shipment

Model	Poles	Inner Box (PCS/cm)	Outter Box (cm)	QTY (PCS)	G.W. (kgs)
LONQ-40.2-2	4P	1/2610.812	57.527.549.5	20	21

FULLY CERTIFIED

Branded source manufacturers with high quality and low price

Note: Contact us for more certificates

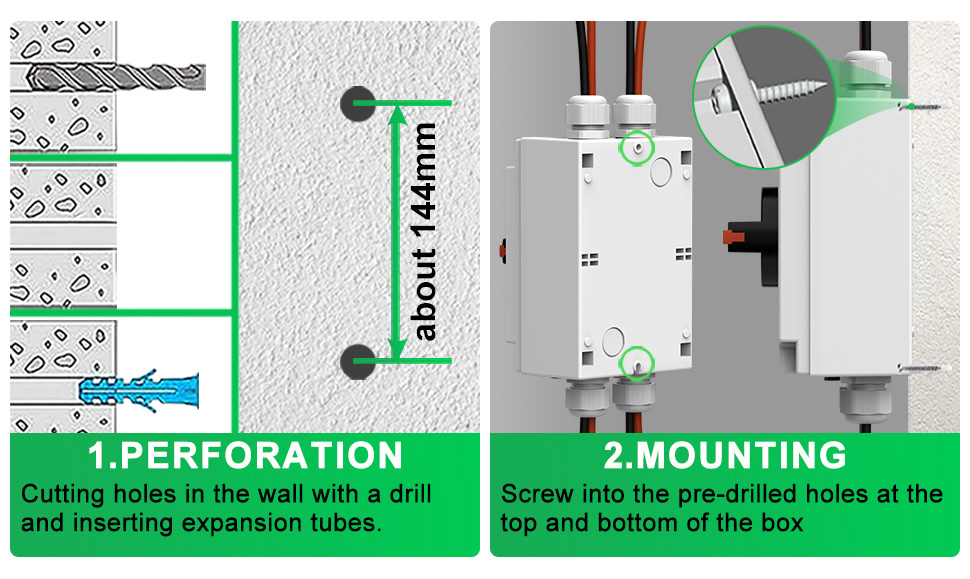

INSTALLATION AND WIRING

Wall Mount

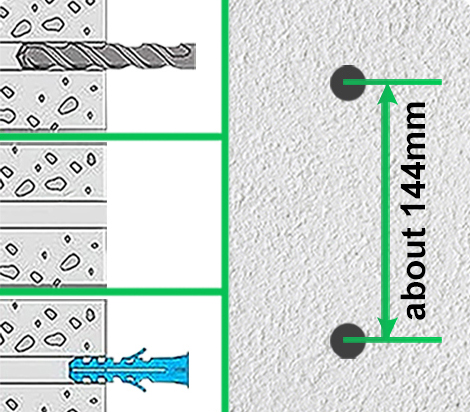

1.PERFORATION

Cutting holes in the wall with a drill and inserting expansion tubes.

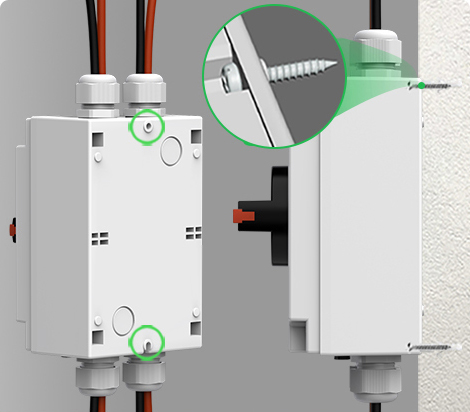

2.MOUNTING

Screw into the pre-drilled holes at the top and bottom of the box

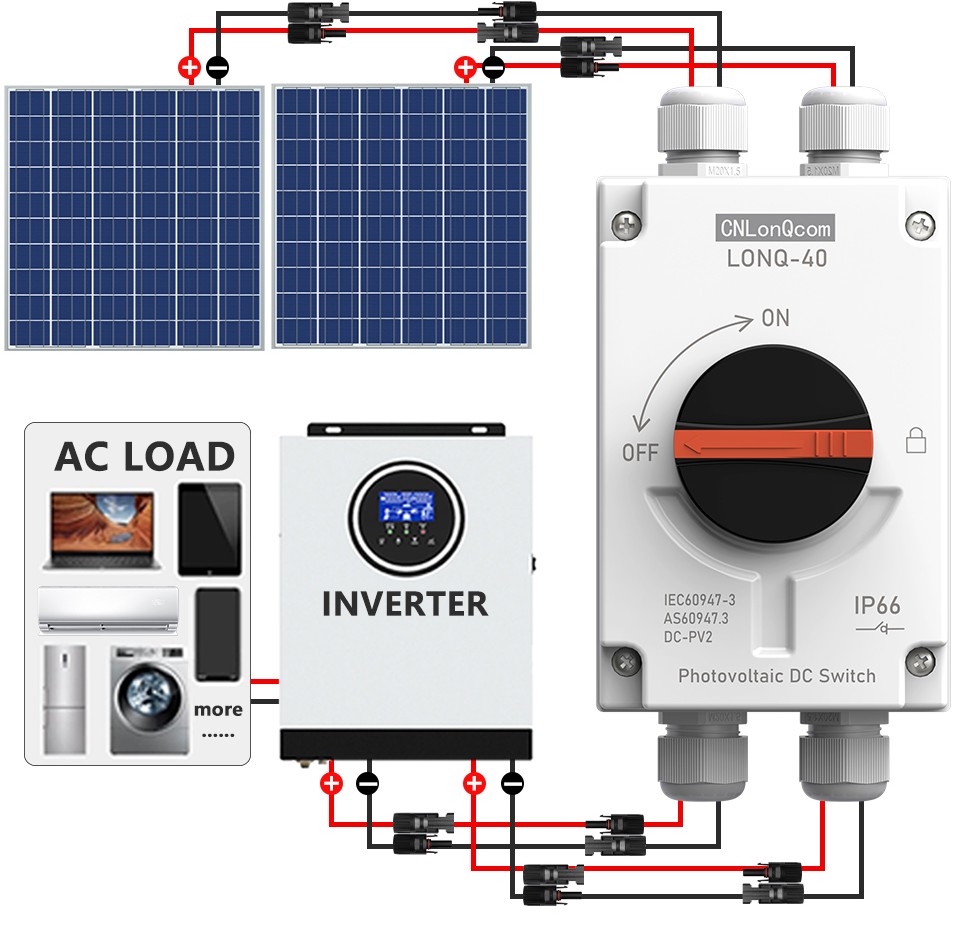

Connect Wire 2 in 2out

PRODUCT DETAILS

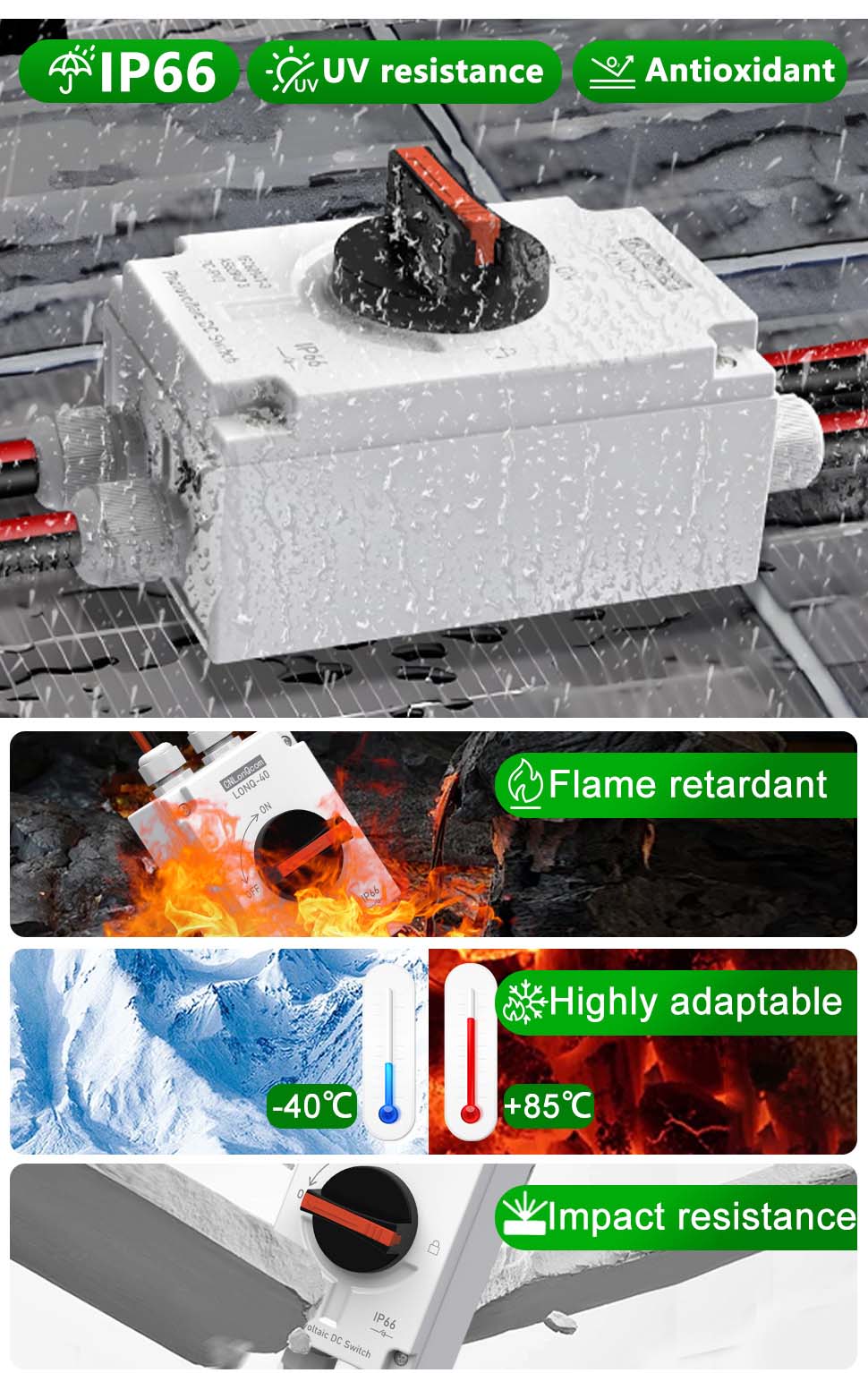

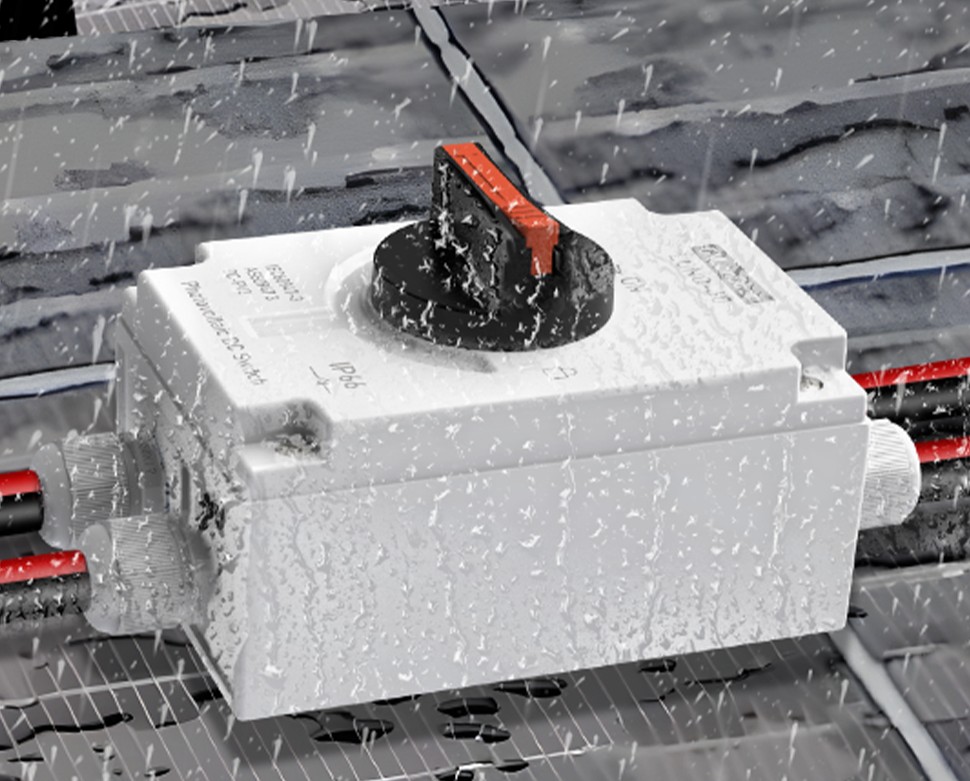

IP66

UV resistance

Antioxidant

Flame retardant

Highly adaptable

Impact resistance

Fast arc extinguishing,
insulation voltage up to 1500V

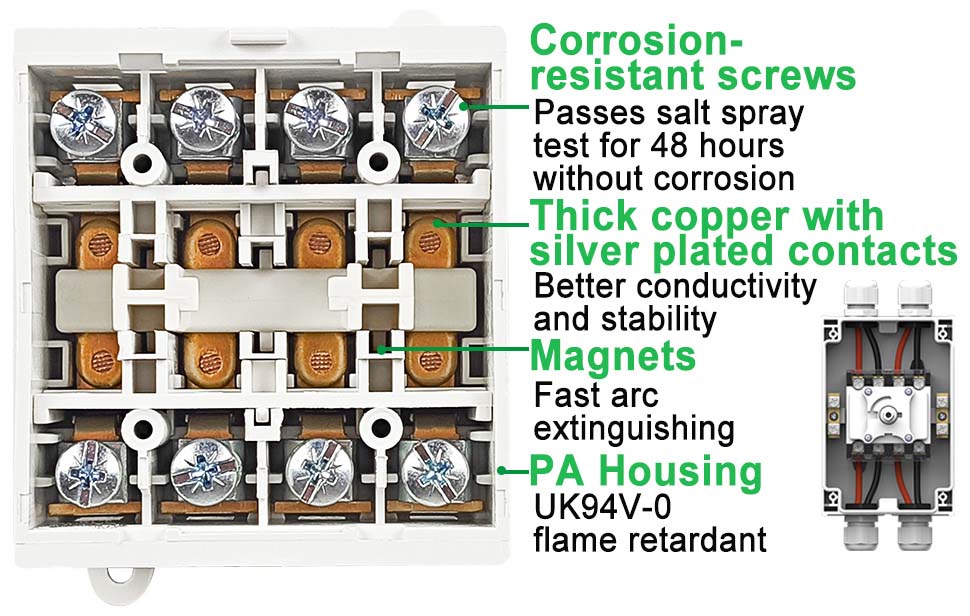

Corrosion-
resistant screws

Passes salt spray
test for 48 hours
without corrosion

Thick copper with
silver plated contacts

Better conductivity
and stability

Magnets

Fast arc
extinguishing

PA Housing

Durable,
UL 94V-0
flame retardant

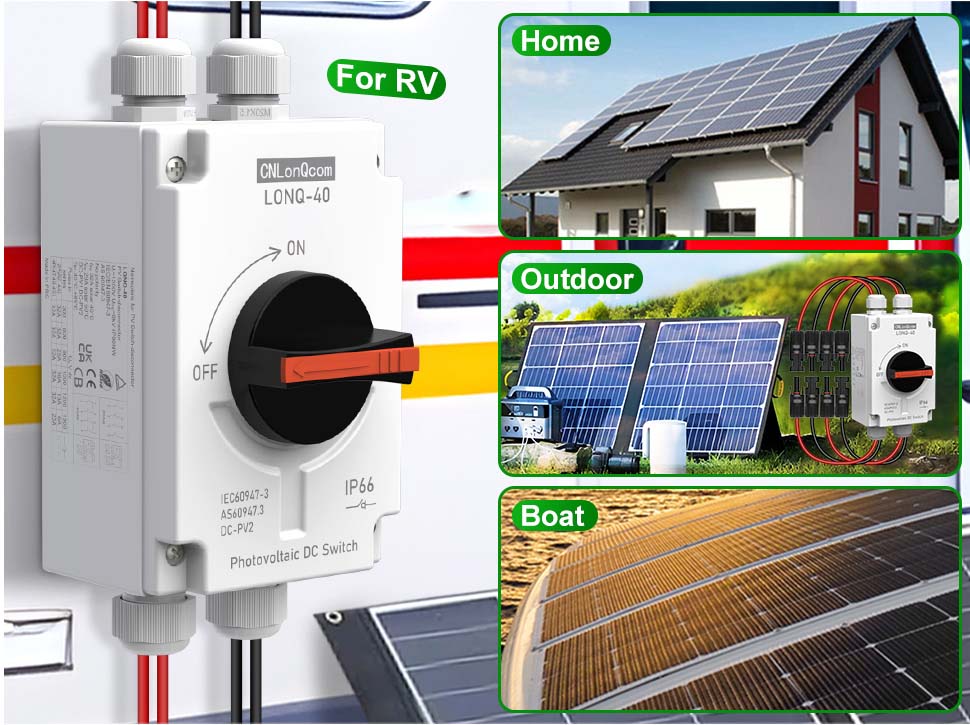

APPLICATION CASES

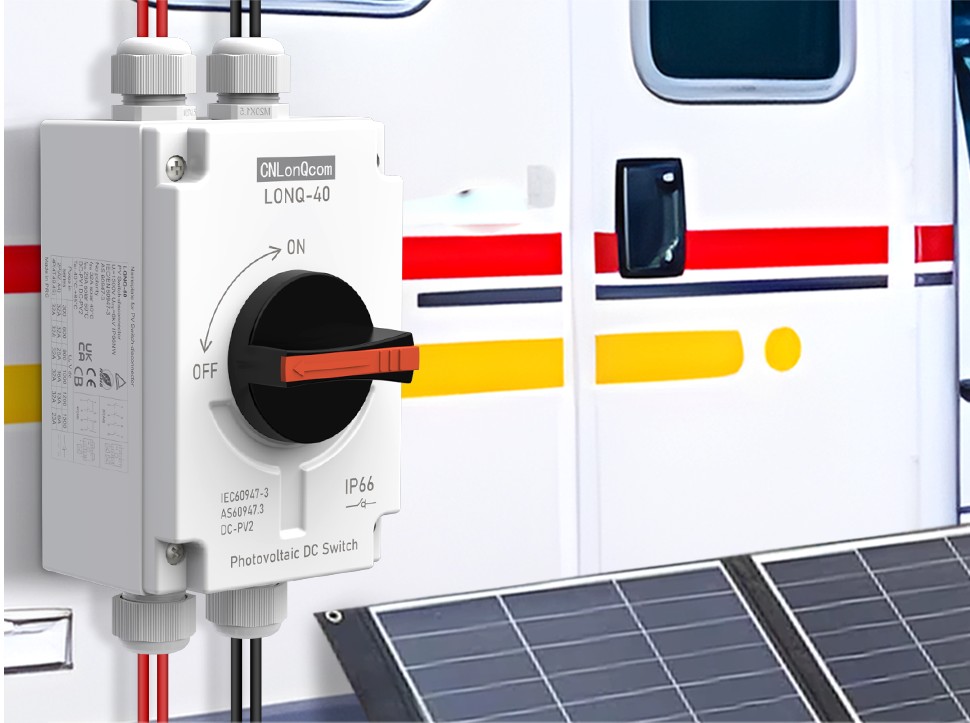

For RV

Home

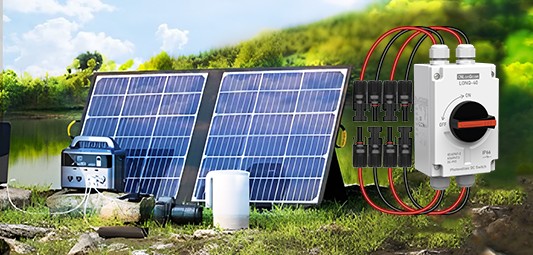

Outdoor

Boat

PRODUCT FAMILY

(Note: hole required)

Modle:

LQNQ-40

String:

1 String

Modle:

LQNQ-40.1PV

String:

1 String

Modle:

LQNQ-40.2PV

String:

2 String

(Note: Wiring Required)

Modle:

LQNQ-40.M12

String:

1 String

(Note: Wiring Required)

Modle:

LQNQ-40.M20

String:

1 or 2 String

(Note: Built- in Switch)

Modle:

LQNQ-40.2-2

String:

2 String

(Note: Built- in Switch)

Modle:

LQNQ-40.X

String:

1 or 2 String

Modle:

LQNQ-40.I

String:

1 or 2 String

(Note: PV Accessories)

Modle:

PV Connectors

Rated Current:

6A~ 60A

GLOBAL LAYOUT OF CNLonQcom

WELCOME TO BECOME OUR AGENT

We will provide our agents with:

1. More favourable price
2. Exhibition/sales channels
3. Area price protection
4. OEM/ODM support
5. Technical& Accessories Support
6. Annual sales target rebate

● CNLonQcom is a manufacturer specializing in the production of PV Disconnect Switch DC1200V 32A with PV Cable 2in 2out, designed for residential or commercial photovoltaic systems ranging from 1kW to 20kW. These switches are intended for installation between solar panels and charge controllers, solar panels and inverters, or between solar panels themselves.

● Featuring pre-wired PV Switch-disconnectors with solar connectors, our products allow for faster and safer installations. With the capability to disconnect loads up to 8 times the rated current, they are an ideal choice for any occasion requiring electrical isolation such as repair, maintenance, inspection, and installation.

● Moreover, our PV Disconnect Switch DC1200V 32A with PV Cable 2in 2out come with an IP66 waterproof case, providing exceptional protection levels, made from high-quality plastic materials, UV resistant, and offering options for 2-4 poles suitable for distribution boxes. Compact in design and suitable for outdoor use, they protect your isolator switches from rain, dust, and other weather elements.

● The compatibility of our PV Switch-disconnectors with solar connectors makes it suitable for solar power systems in RVs, ships, and off-grid/on-grid solar systems, specifically designed for home solar systems and commercial solar systems. It offers comprehensive protection with an independent and enclosed isolator switch and a padlock that ensures it rem
