PV Combiner Box 6in 1 out DC500V

CNLonQcom IP65 PV Combiner Box 6in 1 out DC500V/600V/800V with Circuit Breaker and Surge Lightning Protection and Fuse For Outdoor Solar Panel DC Systems, Rv, Homes, Boats
●Rated voltage: DC500V/600V/800V
●Rated current: 6/10/16/20/25/32/40/50/63A
●String: 6in 1out
●Maximum input current per string: 6/10/16/20/25/30A
●Maximum output current per string: 6/10/16/20/25/32/40/50/63A
●Connector: MC-4 or PG
●standard: IEC60269-6, IEC60947-2, IEC61643-1
●Housing Material: PC+ABS
●Certificate: CE, IP65, ROHS, ISO9001

Model:LQX6/1DC500V/600V/800VB1

Send Inquiry

Product Description

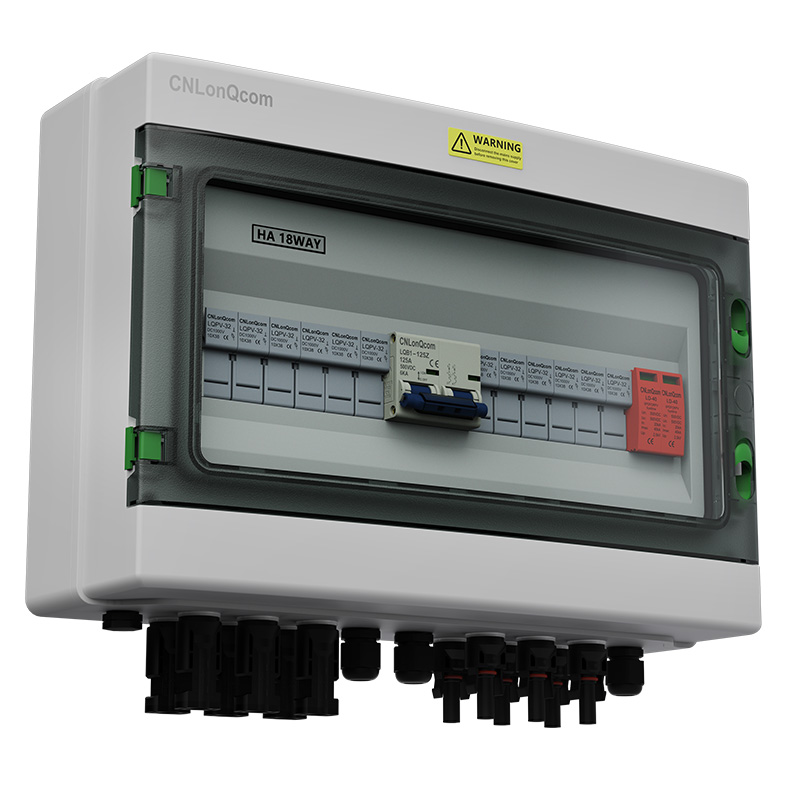

CNLonQcom's HA Series Plastic PV Combiner Box 6in 1 out DC500V features a PC+ABS waterproof case with sealed construction, overload protection, short circuit protection, overvoltage protection, dust, moisture and lightning protection.

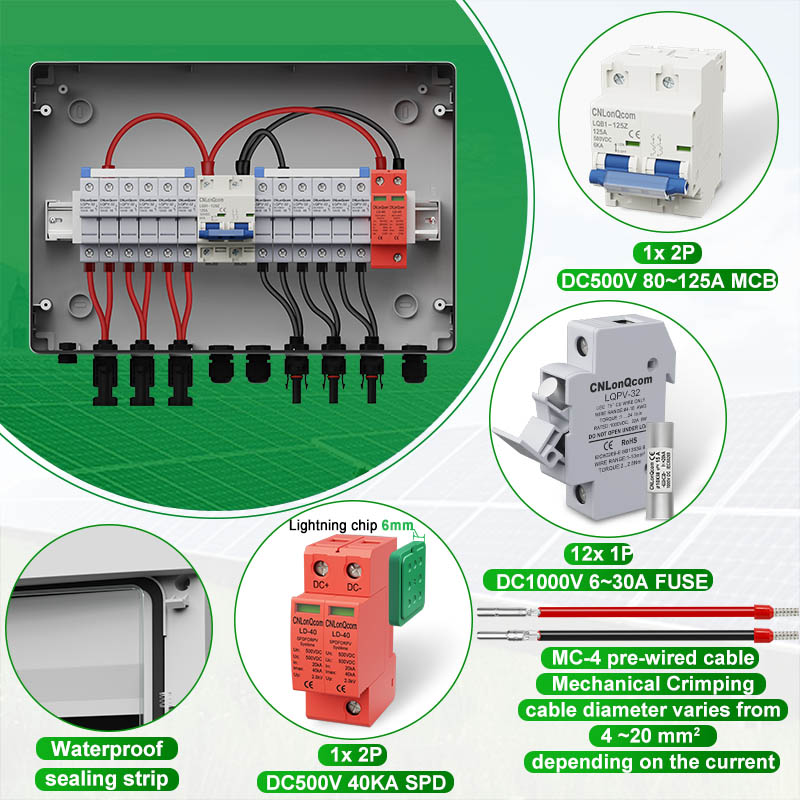

The internal components of HA Series Plastic PV Combiner Box 6 in 1 out DC500V/600V/800V are 2P MCB, 2P SPD and 2P FUSE, which are made of PA shell.

SPD modules and fuse cores can be quickly replaced without removing the cover when damaged.

CNLonQcom's HA Series Plastic PV Combiner Box 6 in 1 out DC500V/600V/800V are mainly used for the protection of PV systems and are often used in off-grid or grid-connected systems. Such as PV panels, Rv, Boat, Outdoor PV, Household, etc.

PV Combiner Box 6 in 1 out DC500V/600V/800V effectively protects inverters and Solar panels from damage and sends from fire.
