CNLonQcom is a professional manufacturers and suppliers in China. Our factory provides DC combiner box, DC combiner box, surge protective device material, etc. Extreme design, quality raw materials, high performance and competitive price are what every customer wants, and that's also what we can offer you. We take high quality, reasonable price and perfect service.
- View as
PV DC Solar Isolator Disconnect Switch DC1200V 32A
CNLonQcom PV DC Solar Isolator Disconnect Switch DC1200V 32A Switch DIY Open Hole Wiring 1 or 2 Strings IP66 Outdoor Waterproof and Dustproof For Solar Panel and Wind PV Systems, RV, Houses, Boats.
●Rated voltage: DC1200V
●Rated current: 32A
●String:DIY 1 or 2 String
●Protection level:IP66
●Shell material: PC
●Conductor material: copper
●Poles:2/4 poles
●Certificate: CE, TUV, CB, AZ, UKCA, ROHS, ISO9001
PV DC Disconnect Switch DC1200V 32A 1in 1out
CNLonQcom PV DC Disconnect Switch DC1200V 32A 1in 1out Isolator Switch 1 String IP66 Outdoor Waterproof and Dustproof For Solar Panel and Wind PV Systems, RV, Houses, Boats.
●Rated voltage: DC1200V
●Rated current: 32A
●Protection level:IP66
●Shell material: PC
●Conductor material: copper
●Poles:2 poles
●Certificate: CE, TUV, CB, AZ, UKCA, ROHS, ISO9001
PV Disconnect Switch DC1200V 32A DIY 1 or 2 String
CNLonQcom PV Disconnect Switch DC1200V 32A DIY 1 or 2 String Isolator Switch 1In 1Out or 2in 2out IP66 Outdoor Waterproof and Dustproof For Solar Panel and Wind PV Systems, RV, Houses, Boats.
●Rated voltage: DC1200V
●Rated current: 32A
●Protection level:IP66
●Shell material: PC
●Conductor material: copper
●Poles:4 poles
●Certificate: CE, TUV, CB, AZ, UKCA, ROHS, ISO9001
PV Disconnect Switch DC1200V 32A with PV Cable 2in 2out
CNLonQcom PV Disconnect Switch DC1200V 32A with PV Cable 2in 2out Isolator Switch IP66 Outdoor Waterproof with PV Extension Cord and Dustproof For Solar Panel and Wind PV Systems, RV, Houses, Boats.
●Rated voltage: DC1200V
●Rated current: 32A
●String: 2in 2out
●Protection level:IP66
●Shell material: PC
●Conductor material: copper
●Poles:4 poles
●Certificate: CE, TUV, CB, AZ, UKCA, ROHS, ISO9001

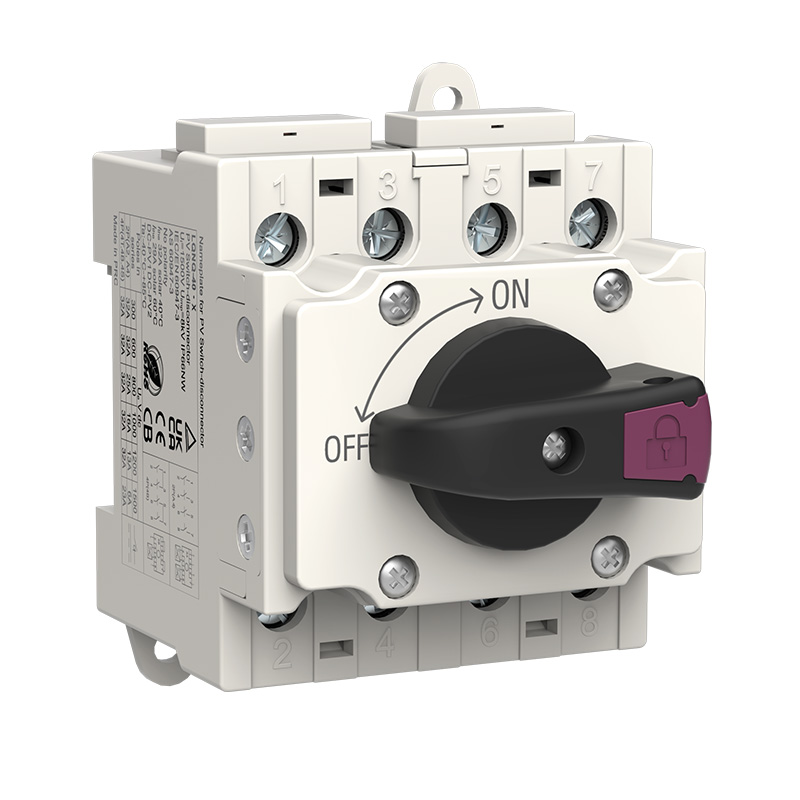

Disconnect Switch Power Distribution Module 2P/4P
CNLonQcom Disconnect Switch Power Distribution Module 2P/4P Built-in Module DC1500V 40A 2P/4P, DC Overload Protection and Short Circuit Protection
Rated voltage: DC1500V
Rated current: 40A
Protection level:IP20
Shell material: PA
Conductor material: copper
Poles:4 poles
Certificate: CE, TUV, CB, AZ, UKCA, ROHS, ISO9001
Plastic DC combiner box 1 in and 1 out
CNLonQcom IP65 PV Plastic DC combiner box 1 in and 1 out DC500V with Circuit Breaker and Surge Lightning Protection and Fuse For Outdoor Solar Panel DC Systems, Rv, Homes, Boats
●Rated voltage: DC500V
●Rated current: 6/10/16/20/25/32/40/50/63A
●String: 1in 1out
●Maximum input current per string: 6/10/16/20/25/30A
●Maximum output current per string: 6/10/16/20/25/32/40/50/63A
●Connector: MC-4 or PG
●standard: IEC60269-6, IEC60947-2, IEC61643-1
●Housing Material: PC+ABS
●Certificate: CE, IP65, ROHS, ISO9001
