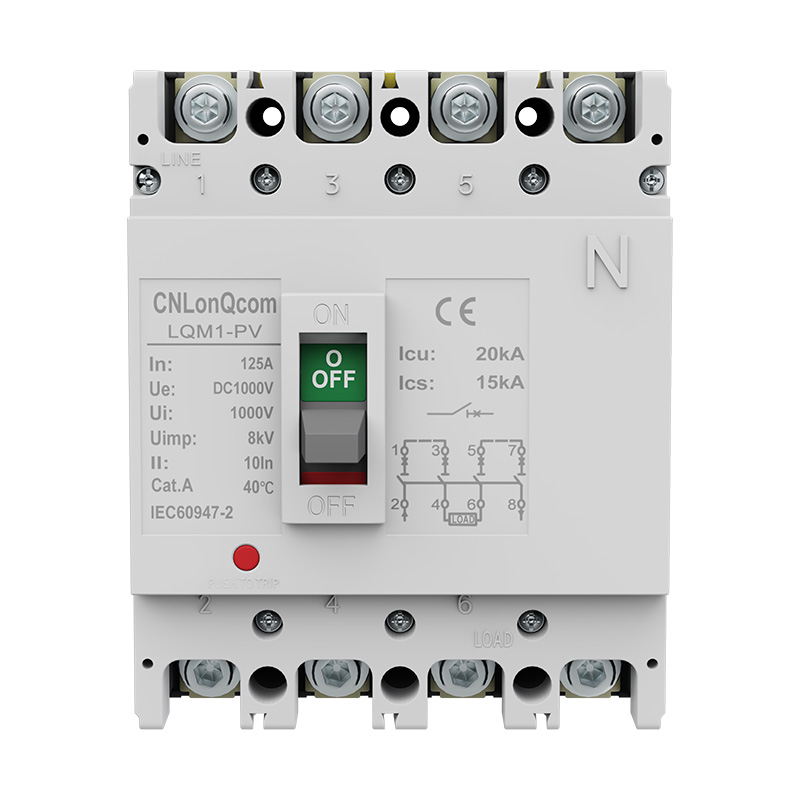

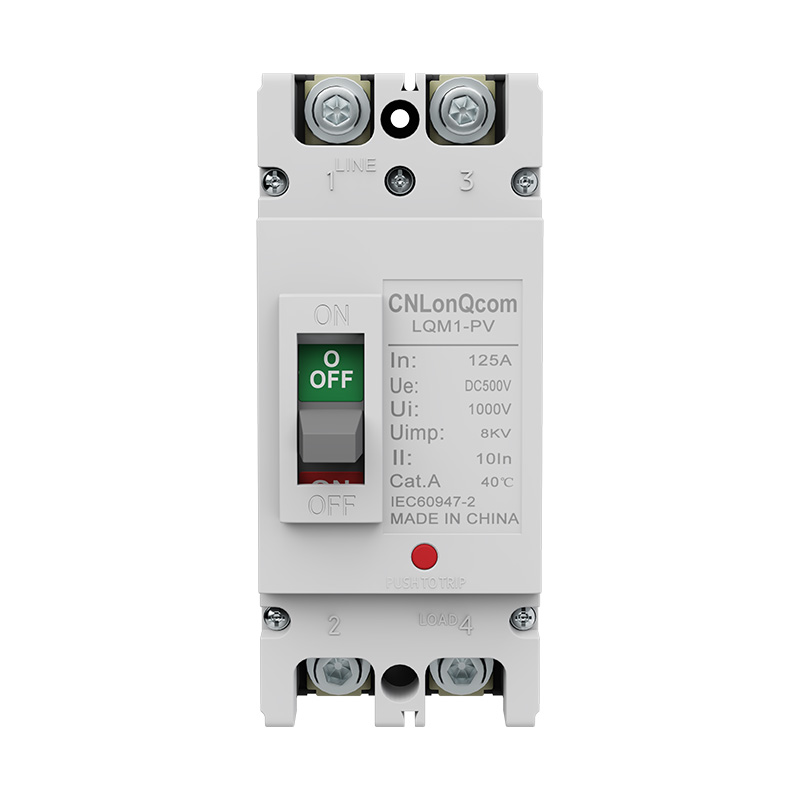

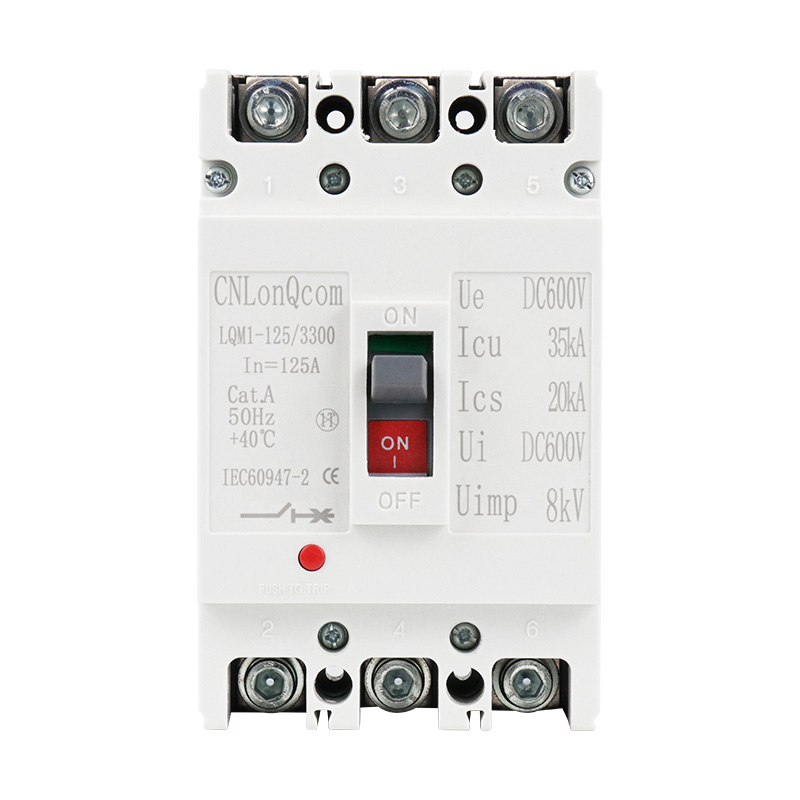

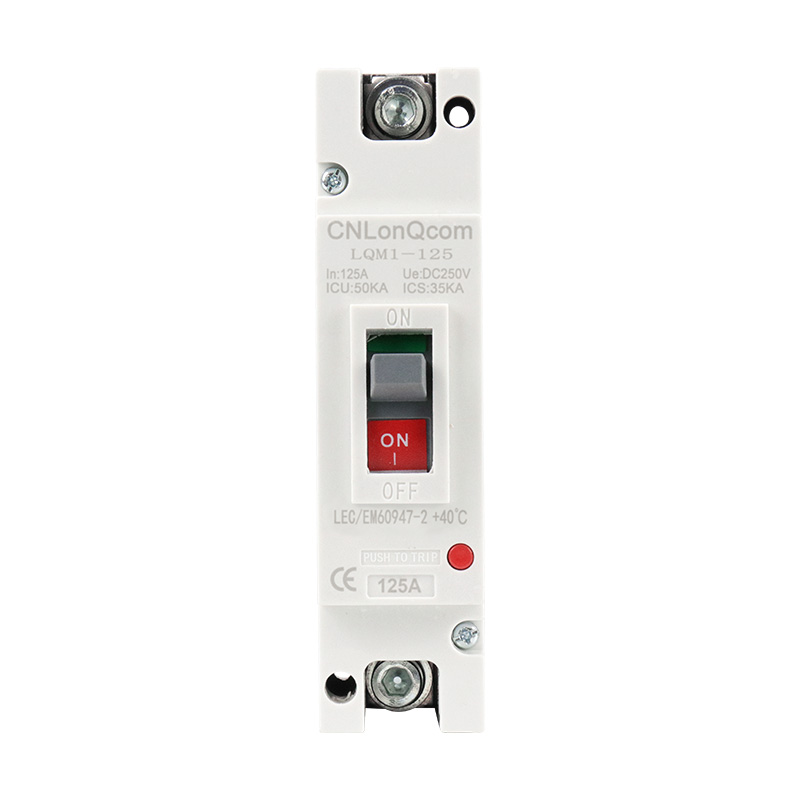

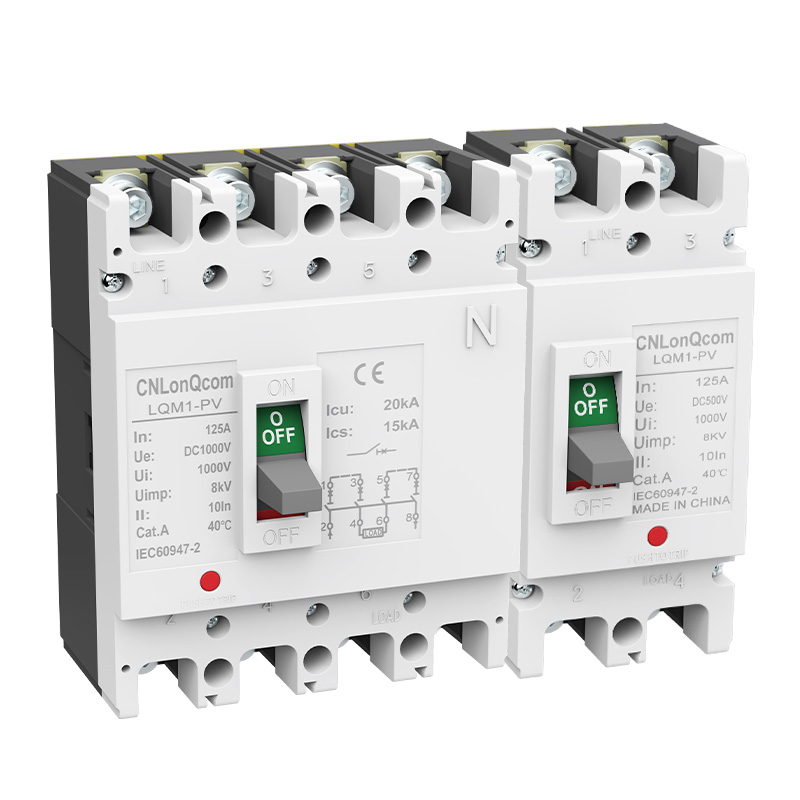

DC Molded Case Circuit Breaker LQM1-125Z

CNLonQcom is a Chinese manufacturer specializing in the production of DC molded case circuit breakers. These products provide functions for circuit interruption, short circuit protection, and protection, effectively extending the lifespan of electrical equipment.

1.DC Molded Case Circuit Breaker LQM1-125Z feature fast and accurate circuit interruption, short circuit protection, and adjustment functions, with good circuit interruption and short circuit performance.

2.They protect electrical equipment from damage caused by overloads, short circuits, or other electrical faults.

3.DC Molded Case Circuit Breaker LQM1-125Z effectively prevent arc faults and melting.

4.They are made with high-insulation plastic enclosures, offering excellent weather resistance, corrosion resistance, and arc resistance.

5.They have reliable quality performance, ensuring long-term reliable operation.

● Protection and Isolation wiring
● The load should be ≤ DC1000V
The connection considered for anetwork in which the
middle point of the supply source is earthed
In this case the breaker protects and isolates the load

● Protection and Isolation wiring
● The load should be ≤ DC 1000V
The Negative pole (-) could be earthed，butin both cases
the breaker protects and isolates the load
