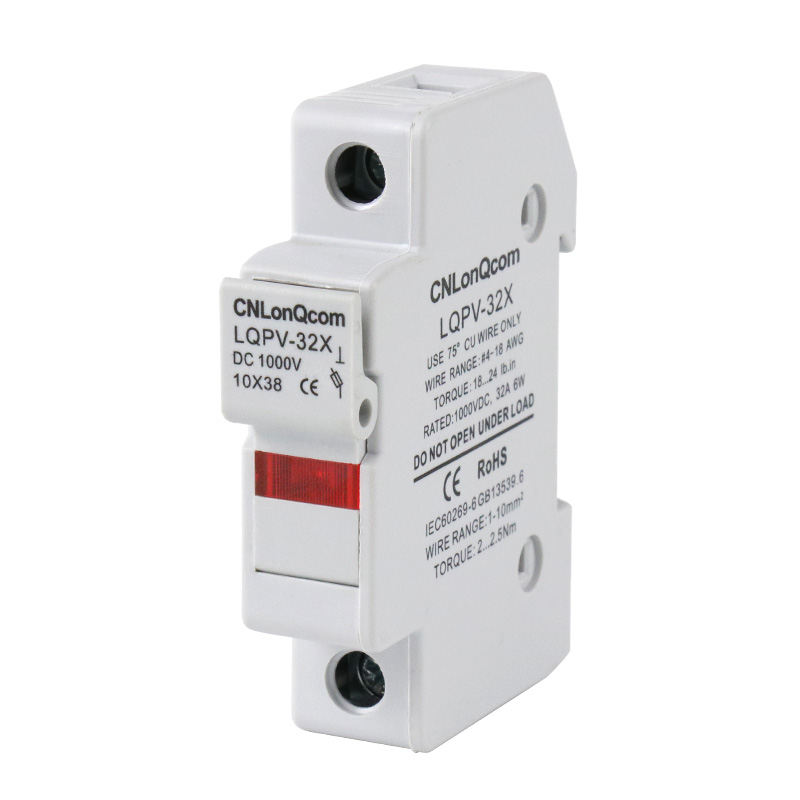

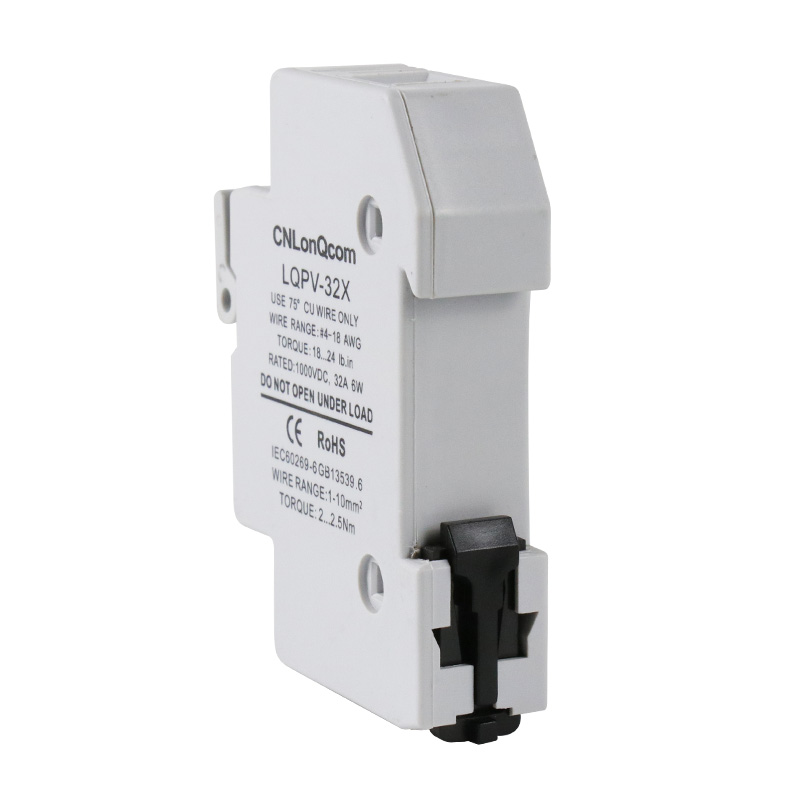

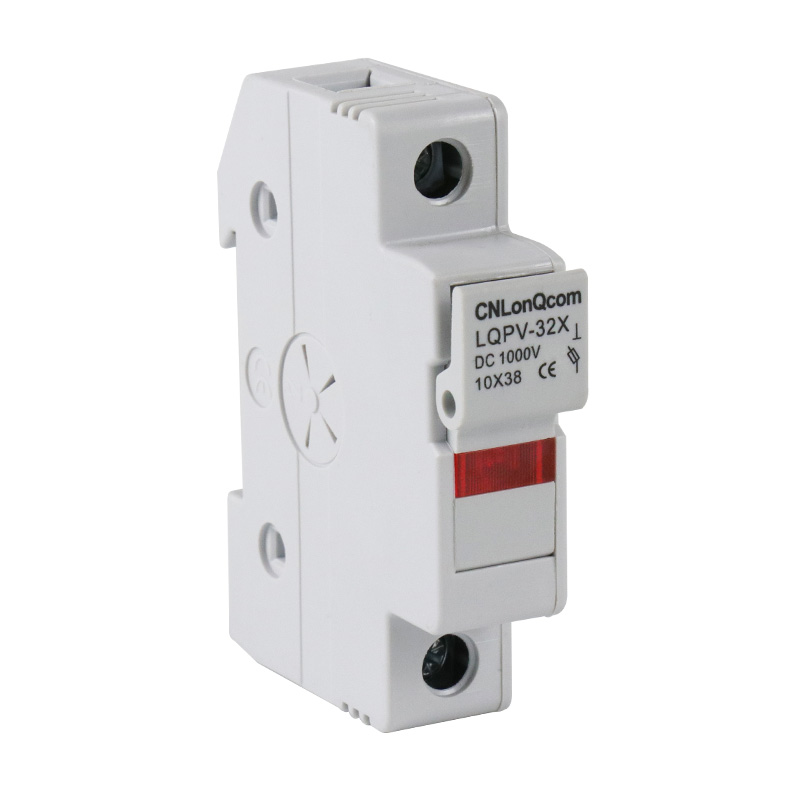

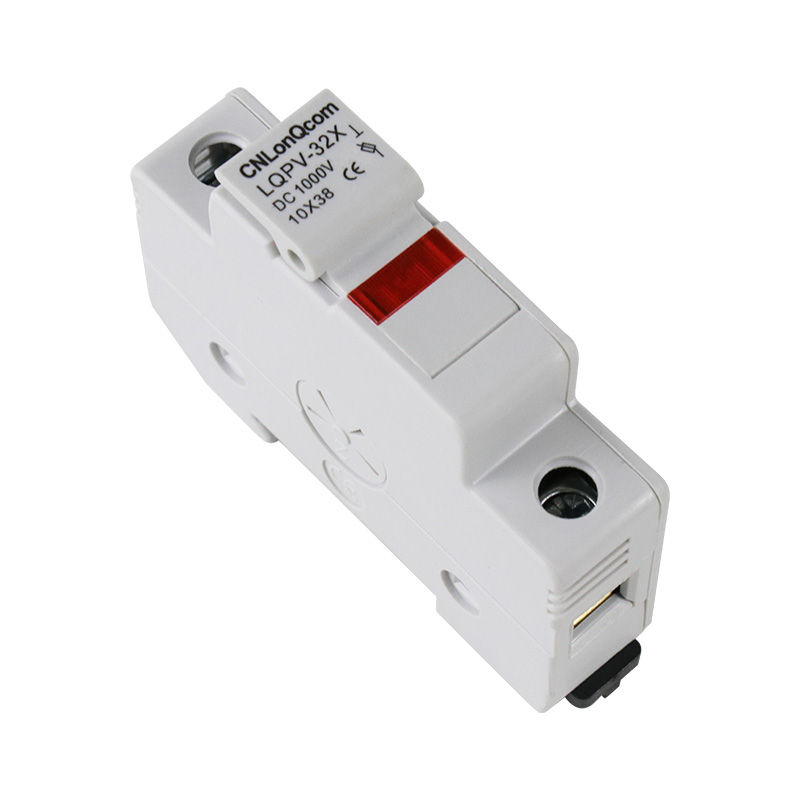

1000V DC Fuse Holder with Display
CNLonQcom 1000V DC Fuse Holder with Display for 10x38mm Fuse DC1000V 35mm DIN Rail Mount for PV System
●Rated voltage: DC1000V
●Rated current: 6/10/15/20/25/30A
●Fuse Size: 10x38nn
●Poles: 1P
●Shell material: PA
●Certificate: CE, ROHS, ISO9001
Model:LQPV-32X DC1000V
Send Inquiry
Product Description
CNLonQcom is a manufacturer of 1000V DC Fuse Holder with Display, and each fuse holder undergoes extensive testing to ensure they can prevent electrical short circuits and provide a long service life.
1.The 1000V DC Fuse Holder with Display feature high-quality resin enclosures with a smooth surface, offering excellent insulation and flame-retardant properties for enhanced safety.
2.The 1500V DC and 1000V DC Fuse Holder with Display operate stably and are suitable for various equipment and instruments.
3.They are primarily used to protect circuits from overloads and short circuits, ensuring more reliable and safer product usage.
4.The 1000V DC Fuse Holder with Display exhibit good insulation, durability, corrosion resistance, and heat resistance.
Main technicalparameters
| Model of fuse link | rated voltage (V) | Rated current(A) | Overall dimensions（mm） | Dissipated power (W) | |
| gPV | Drawing No | D×L | |||

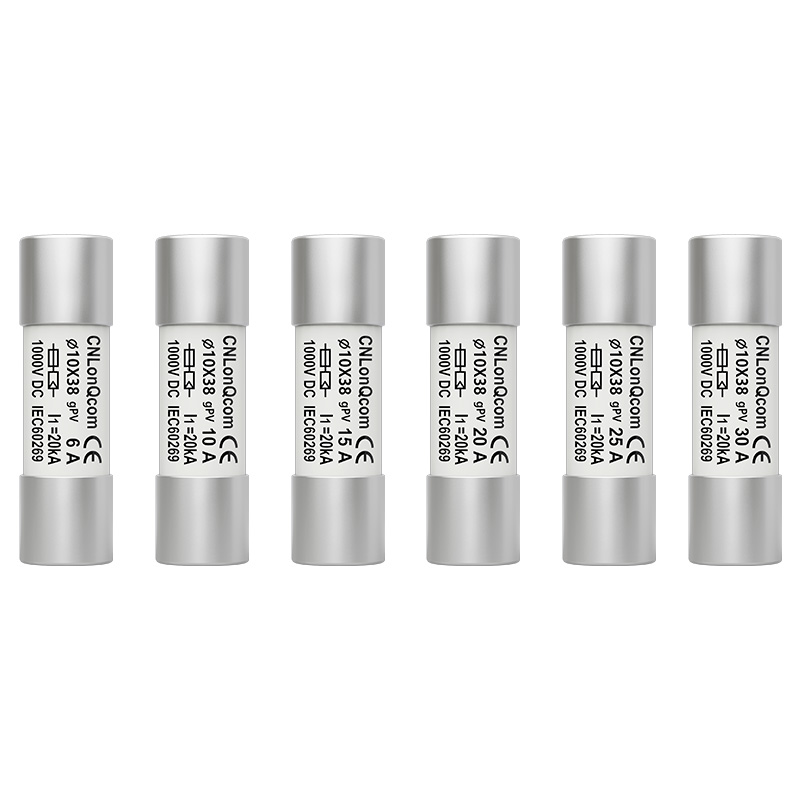

| LQPV-1038 | DC1000V | 2、3、4、5、6、8、10、12、15、20、25、30 | 1 | 10.3±0.1×38±0.6 | ≤ 4.5 |
| Fuse holder model | Fuse size | rated voltage Vdc | Rated current (A) | Overall dimensions（mm） | |||||
| Drawing No | A1 | A2 | B | H1 | H2 | ||||
| LQPV-32 Base | 10×38 | 1000 | 32 | 2 | Drawing No2 | ||||
Test Method
| gPV”Rated current | Agreed time | agreed current | |
| A | h | Inf | If |
| In ≤ 63 | 1 | 1.13In | 1.45In |
| 63 ＜ In ≤ 160 | 2 | ||
| 160 ＜ In ≤ 400 | 3 | ||
| In ＞ 400 | 4 | ||
Characteristics Curve
RFQ (Request for Quotation)
Q1: What payment conditions does CNLonQcom accept for 1500V DC and 1000V DC Fuse Holders?
A1: We accept credit card, Western Union, PayPal, or bank transfer payments.
Q2: Can your DC1000V and DC1500V fuse holders be customized?
A2: CNLonQcom is a professional manufacturer of 1500V DC and 1000V DC Fuse Holders in China. We accept OEM and ODM orders and can provide various customization options to meet your requirements.
Q3: How is the quality control in your factory?
A3: All our fuse holder products undergo 100% inspection before shipment.
Q4: When can I receive the pricing?
A4: We will provide a quotation within 24 hours upon receiving your inquiry.
A1: We accept credit card, Western Union, PayPal, or bank transfer payments.
Q2: Can your DC1000V and DC1500V fuse holders be customized?
A2: CNLonQcom is a professional manufacturer of 1500V DC and 1000V DC Fuse Holders in China. We accept OEM and ODM orders and can provide various customization options to meet your requirements.
Q3: How is the quality control in your factory?
A3: All our fuse holder products undergo 100% inspection before shipment.
Q4: When can I receive the pricing?
A4: We will provide a quotation within 24 hours upon receiving your inquiry.
